  • 26. Search

26. Search Search

The search dock window contains several tabs with similar functionality that allows to search for objects by name, ident or other criteria.

Filters are defined by various controls which are mostly self explaining. Only text filters and the tri-state checkboxes like Lighted, Approach or Closed need a few extra remarks below.

All filters can be used together where all conditions have to be met (and operator). All filters except the distance search filter are applied immediately. The distance search is applied after a short delay for each change.

A tooltip on the blue help button on the top right shows information about searching.

See Tables for more information how to rearrange columns in tables.

Tip

You can use the cursor key Down to jump from the input fields into the result table.

Using keyboard shortcuts like Ctrl+I for Show Information or Ctrl+M for Show on map are usable directly from the input fields and will apply to the topmost airport in the result table.

The same applies to other tabs like navaid and logbook search as well.

26.1. Text filters

The standard is to look for partial text matches. This means that a search term of Chicago will find the airports Gary Chicago as well as O’Hare (due to city Chicago).

EDDE will find the airports Erfurt-Weimar (EDDE) as well as Wedderburn.

Use stars * as wildcards matching any text and double quotes " for exact word match. Using "EDDE" will find the the airport Erfurt-Weimar (EDDE) only.

The search is negated (i.e. find all entries that do not match) if the first character of a search term is a -.

Note that all of the above does not apply to numeric fields like Runways: Min or Altitude: Max.

26.2. Airport and Navaid Ident Text filters

The airport search has a special search field for all airport idents and names (ICAO, FAA, IATA, local, name, city, state/province and country) using partial match for quick search.

Separate search fields are available in the drop down menu under Names. The same rules as mentioned in Text filters above apply.

Entering three or four characters in the ICAO Code field of the airport search tab will trigger a quick search which ignores all other filters.

The fields Ident, name, city, state, province, country or area code for the airport and navaid Ident search allow more functionality besides the one described above:

  • Put an search term in double quotes " to force an exact search, i.e. avoid partial matches. Example: SEA finds two airports one being SEAM while "SEA" finds only KSEA because of the matching IATA code SEA.

  • Separate several idents by space to do a search for each ident. EDDF EDDM find the two airports Frankfurt and Munich, for example.

26.3. Tri state checkboxes

These are used to filter airports by presence of certain facilities or properties.

Below are the states as they are shown in Windows 10:

  • Black Box: Condition is ignored.

  • Checked: Condition must match.

  • Empty Box: Condition must not match.

Colors and look of these checkboxes vary with theme and operation system. So instead of gray another color might be used (red fill on Linux or a - for macOS).

26.4. Menu Button Menu Button

Airport, navaid, userpoint and online search tabs contain multiple sections of search filters. These sections can be switched on and off with the drop down menu on the menu button Menu Button on the top right.

The drop down menu prefixes menu items with a change indicator to show that the related filter section has modifications. The menu item suffix (changed) shows an option is modified and visible to the user. (changed, not used) indicates a modified option which is not used since the related fields are hidden from the dropdown menu button.

Tip

If you do not get the expected results or no results at all use the Reset Search menu item, the button Reset Search Reset Search or press Ctrl+R to clear all search criteria.

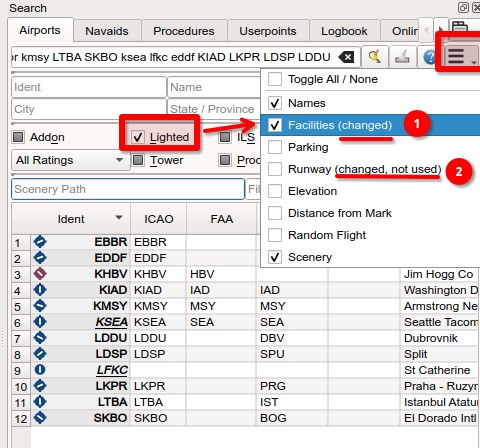

_images/searchmenu.jpg

Click the dropdown menu. This will indicate if there are changes in the related section. Facilities are all the airport properties like add-on, tower and so on in this example. Little Navmap ignores sections in the search which are not visible (deselected in the drop down menu). (1) has changes in a visible section (Lighted) and (2) has changes in a hidden section (Runway) which are ignored.

26.5. Distance search

This function is only available in the airport and navaid search.

This function allows you to combine all other search options with a simple spatial search.

The checkbox Distance has to be selected to enable this search. The result will include only airports or navaids that are within the given minimum and maximum range of NM from the search center. This allows you to quickly search for a destination that is within the range of your aircraft and fulfills other criteria like having lighted runways and fuel.

The center for the distance search is highlighted by a Distance Search Symbol symbol.

To restrict the search further you can select a direction (North, East, South and West).

Check the drop down menu for the suffix (changed) and the search fields for any remaining text if the distance search does not give any or unexpected results. Use the Reset Search menu item, the button Reset Search Reset Search or press Ctrl+R to clear all search criteria.

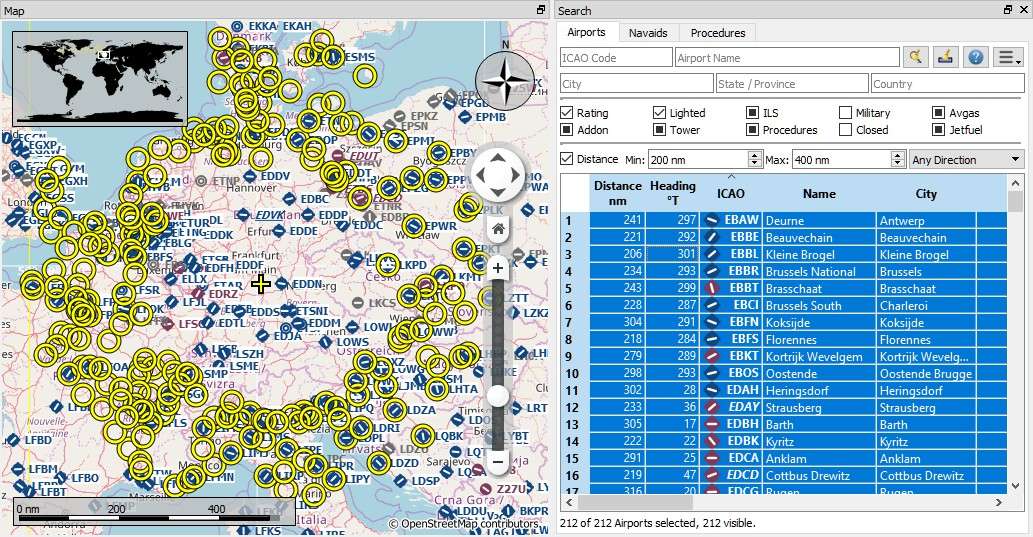

_images/complexsearch.jpg

A complex distance search: Find all airports within a distance between 200 and 400 NM from Frankfurt (EDDF). Airports should have a rating greater than 0 and should have at least one lighted runway. Military and closed airports are excluded. The resulting airports are highlighted on the map by selecting them in the search result table. Click image to enlarge.

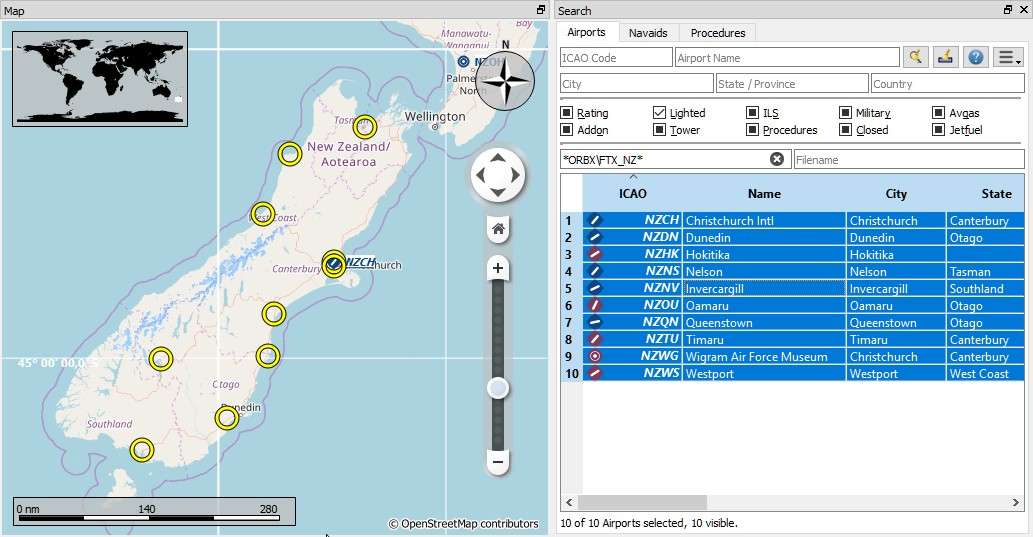

_images/complexsearch2.jpg

A complex search for scenery: This example shows how to find specific add-on scenery by using the Scenery Path search field. This shows all airports of the Orbx New Zealand South Island add-on scenery that have lighted runways. Click image to enlarge.

26.6. Random Flight in Airport Search

Selects a flight using a random departure and a random destination based on the current airport search result.

See Random Flight Generation for more information about this function.

26.7. Ident and Names in Airport Search

The input field Ident, name, city, state, province, country or area code in the airport search tab searches for all available airport identifiers and names.

  • Ident: Mostly equal to ICAO code but can be different especially for small airfields. X-Plane uses partially an unofficial code in this field like XPA000B. Available for all simulators and Navigraph navdata.

  • ICAO: Four letter ICAO code. Only available in X-Plane.

  • FAA: Airport code used in the United States given by the Federal Aviation Administration. The FAA code is only available in X-Plane.

  • IATA: Three letter IATA airport code. Available in X-Plane and Navigraph navdata.

  • Local Code: Official local airport code mostly used for small airfields. Only available in X-Plane.

  • Name, City, State/Province, Country/Area Code: Airport names and administrative names. Note that not all names are available depending on simulator.

The airport codes and names are also shown in the information windows, tooltips and in the map labels as well as in Flight Plan Route Description. ICAO, FAA, IATA, and local codes are shown and the internal ident is avoided if possible.

Example:

Akutan is shown as Akutan (PAUT) with its official ICAO code PAUT instead of the internal X-Plane code XPA000B.

Tip

Hide the additonal airport codes if you do not use X-Plane or if you are not interested in these columns. You can do this by moving the columns to the rightmost position or by shrinking them to minimum size. See Search Result Table View.

26.8. Country, State/Province and City in Airport Search

Note that quality and availability for administrative data depends on the selected simulator.

X-Plane airports are community work and therefore administrative names have varying quality, if set at all. Country names are often used in several not official variants like USA, U.S.A., United States and more.

Note

MSFS 2020 provides names in the local language as selected in the options dialog on page User Interface but country names are not available.

MSFS 2024 does not provide administrative names except the airport name.

26.9. Override in Airport Search

Entering an airport ident using three letters or more ignores all other search options and shows only airports matching this ident.

This is indicated by the message Ident overriding other search options. in the search window footer.

26.10. Search Result Table View

All selected elements in the table view will be highlighted on the map using a black/yellow circle. See Highlights in the map legend for more information.

Use Shift+Click or Ctrl+Click to select two or more elements (multi-selection).

See Tables for more information how to rearrange columns in tables.

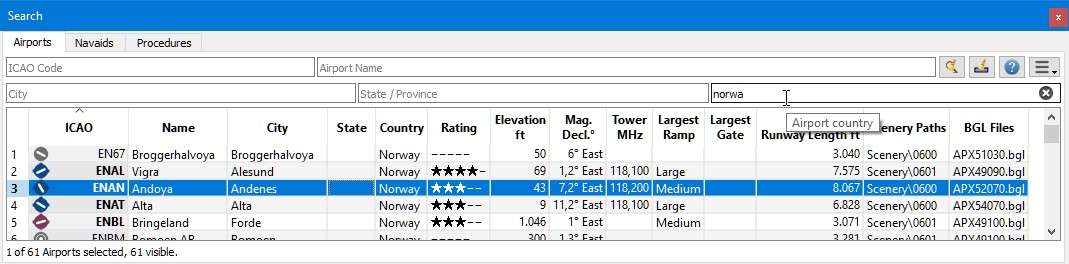

_images/airportsearchtable.jpg

Airport search result table. All additional search options are hidden by using the drop down menu of the menu button on the top right.

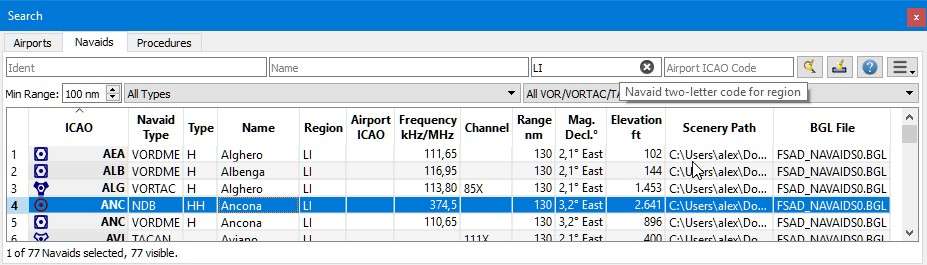

_images/navaidsearchtable.jpg

Navaid search limited to ICAO region LI (Italy) and VOR, VORTAC and TACAN stations that have a range of 100 or more NM.

26.10.1. Footer

The footer shows the number of selected, loaded and visible entries considering search and filter criteria.

Note that you to select Show All from the table context menu or have to scroll down to see all entries:

26.10.2. Mouse Clicks

A double-click on an entry in the table view shows either an airport diagram or zooms to the navaid or other feature. Additionally, details are shown in the Information dock window. Single click selects an object and highlights it on the map using a black/yellow circle.

26.11. Top Buttons

Available buttons and menu items depend on search tab. This chapter explains common buttons and menu items.

26.11.1. Reset Search Reset Search

Same as Reset Search in the context menu.

26.11.2. Clear Selection Clear Selection

Same as Clear Selection in the context menu.

26.11.3. Help Help

Display a quick help in the tooltip. Click to open this chapter of the manual in the default browser.

26.11.4. Menu Button Menu Button

Drop down menu button that allows to hide or show search options.

See Menu Button for details.

The drop down menu suffixes menu items with an indicator (changed) to show that the related filter section has modifications. You can use this to find out why a search does not give the expected results.

26.12. Context Menu Search

Available menu items depend on search tab.

Many menu items are mirrored from the Context Menu Map and provide the same functionality for the selected item below the cursor or the selected rows in the result tables. These are omitted here.

26.12.1. Show on Map Show on Map

Show either the airport diagram or zooms to the navaid, userpoint or other features on the map. The zoom distance can be changed in the dialog the options dialog on the page Map Navigation.

26.12.2. Mark Airport as addon Mark Airport as Add-on

Marks an airport with a yellow circle as add-on. Same as Mark Airport as Add-on. Enabled for all airports at the clicked position.

26.12.3. Filter by Entries including Filter by Entries excluding Filter by Entries including/excluding

Use the field under the cursor to set a search filter that includes or excludes the text of the field. This is only enabled for text columns.

26.12.4. Reset Search Reset Search

Clear search filters and revert to showing all entries in the search result table view.

26.12.5. Show All Show All

The table view does not show all entries initially for performance reasons. This menu item allows to load and show the whole search result. The view switches back to the limited number of entries after a search filter is modified or the sort order is changed. The number of all, visible and selected entries is shown at the bottom of the tab.

Be aware that showing all navaids and airports can take some time especially if they are highlighted on the map when selecting all entries in the search result. The program does not crash but needs a few seconds to highlight all the objects on the map.

26.12.6. Follow Selection

The map view will be centered, but not zoomed in, on the selected feature if this function is enabled.

26.12.7. Copy Copy

Copy the selected entries in CSV format to the clipboard. This will observe changes to the table view like column order and sort order. The CSV includes a header line. Columns which are hidden or shrunk to minimum width are excluded.

Import the CSV-Text into spreadsheet programs using UTF-8 encoding and a semicolon as a separator.

See Tables for more information how to rearrange or hide columns in tables.

26.12.8. Select All

Select all visible entries. To select all available entries the function Show All has to be used first.

26.12.9. Clear Selection Clear Selection

Deselect all entries in the table and remove any highlight circles from the map.

26.12.10. Reset View Reset View

Reset sort order, column order and column widths to default.
