45. Open Flight Plan from SimBrief

This function opens a dialog window where SimBrief flight plans can be imported directly into Little Navmap. SID, STAR and the respective transitions as well as the cruise altitude are downloaded. Note that approach procedures, cruise speed and fuel parameters are ignored by Little Navmap which relies on aircraft performance files for fuel and speed.

See Export Flight Plan to SimBrief for information on how to export a flight plan from Little Navmap to SimBrief.

45.1. Download a Flight Plan

  1. Open a web browser by clicking the blue SimBrief link in the dialog header and login.

  2. Start with either CREATE NEW FLIGHT, LOAD SAVED FLIGHT, EDIT LAST FLIGHT or VIEW LAST FLIGHT.

  3. Once the flight plan is done click GENERATE FLIGHT in SimBrief.

  4. Go back into Little Navmap and select menu File -> Open Flight Plan from SimBrief.

  5. Enter your SimBrief Pilot ID or username. Little Navmap remembers this value.

  6. Click Download Flight Plan.

  7. Click Create Flight Plan if if the generated flight plan was successfully downloaded.

Alternatively, click Open in Route Description for manual editing the flight plan in the Flight Plan Route Description dialog.

Note that the flight plan is kept for a while on SimBrief. You do not have to login and generate the flight every time.

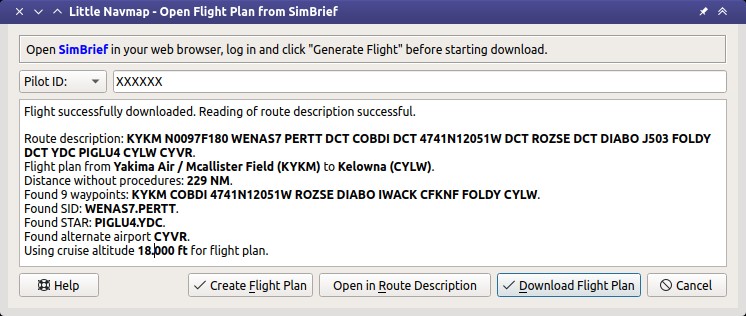

_images/simbrief_open.jpg

Generated flight plan successfully downloaded from SimBrief. Details about the plan are shown in the message area.

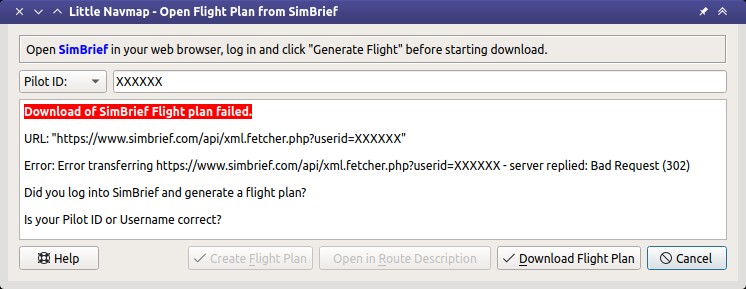

_images/simbrief_open_fail.jpg

The download or parsing failed. Details about errors are shown in the message area.

45.2. How to get the Login Information

  1. Go to MY ACCOUNT in SimBrief. You’ll see the page Your Navigraph Account.

  2. Now click SIMBRIEF DATA to get to the page Your SimBrief Data.

  3. There your can see your Username and your Pilot ID.

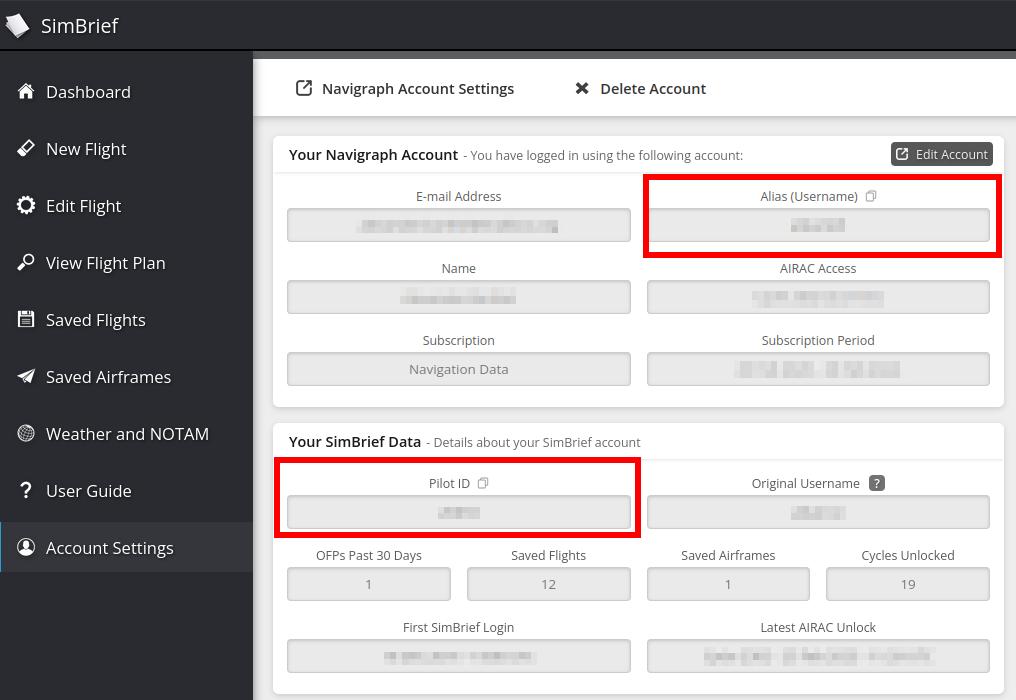

_images/simbrief_user.jpg

Path to user and login information.
