This dialog consists of several pages with configuration options which can be selected in the list on the left side. Each entry in the page list has a tooltip for easier navigation.
Note that scroll bars can show up at the left or the bottom of a options page. Scroll to see hidden options.

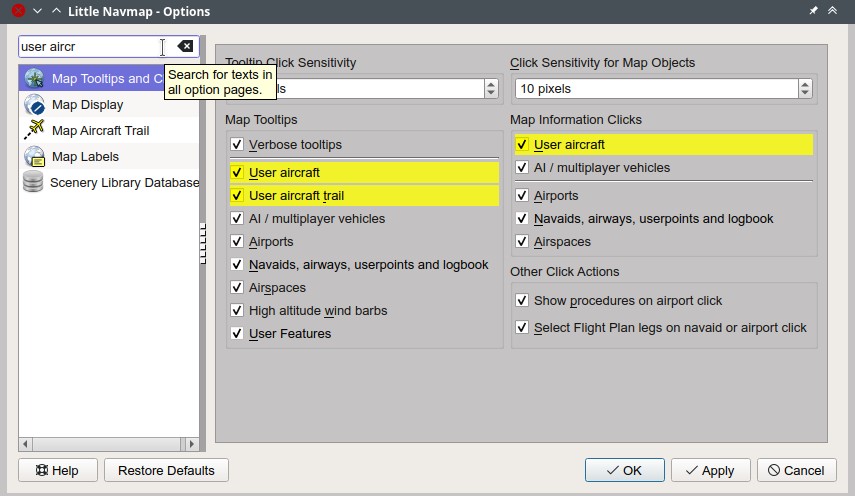

Most options are self-explaining and tooltips contain more information in most cases. Hover the mouse over a button or input field for a more detailed description.
Restore Defaults restores only the options of this dialog
back to default. Other settings like map display, table views or dock
window positions are not affected. You can press
Cancel to close the
dialog and undo this action.
To reset all saved settings completely see Reset all Settings and Restart.
The following chapters give a brief description of each page.
You can immediately check the effect of your changes on the map display
by moving the dialog
Options to the side and pressing
The menu entry which is referenced as
Options in this manual
for Windows and Linux
can be found in the application menu at
Little Navmap ->
Preferences on macOS.
46.1. Startup and Update¶
Allows to customize what should be loaded and shown on startup of Little Navmap.
You can also configure the frequency of the automatic update check and channels. See Checking for Updates for more information. Change the settings here if you wish to get notifications about beta releases.
Always use the beta update channel if you use a beta or test version. Otherwise you might miss important updates.
46.2. User Interface¶
Has options for high DPI support, text sizes in information windows and flight plan as well as the search result table.
This page also contains options to force the program language and locale settings (number, date and time formats) to English if you do not want to use a translated user interface.
Allows to choose the language freely among the supported translations. Note that some translations are incomplete which might result in a mix of English and translated phrases in the user interface.
You have to restart Little Navmap for this change to take effect.
46.2.3. Raise and activate docking windows when moving the mouse over it¶
Raises dock windows when hovering the mouse over it. This can be helpful if you have multiple floating dock windows opened.
See also Dock Windows.
46.2.4. Raise and activate the main program window when moving the mouse over it¶
Raises the main window of Little Navmap when hovering the mouse over it. This will steal the focus of other programs and activate Little Navmap which might cause unwanted effects. Therefore, try this out before using it.
See also Dock Windows.
46.3. Display and Text¶
Various user interface related settings.
46.3.1. User Interface Font¶
You can change the font for the whole user interface of Little Navmap.
The setting is applied immediately. Press
Reset Font to Default to revert back to previous.
The font for map display is not affected by this value and can be set separately on page Map Display.
Keep in mind that using a wrong or too large font can result in display issues.
Try out the B612 Font family which is an open source font family designed and tested to be used on aircraft cockpit screens.

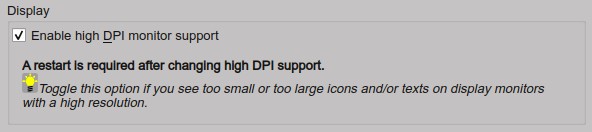

46.3.2. Enable high DPI monitor support¶
Toggle this is you see issues with scaled fonts on Windows, cannot shrink the main window or other issues.
46.3.3. Disable tooltips for whole application¶
Disables tooltips for the whole application except for the map window which has separate settings on page Map.
Useful for experienced users.
46.3.4. Text Size¶
Change default text size for various information displays.
You can temporarily resize the text in information windows by using
This change is not saved.
Has map related customization options. Allows to set the tooltips, scroll performance and more.
Hover the mouse above buttons and input fields to see more information.
46.4.1. Allow to undock the map window¶
Allows to undock and put the map window into a floating state.
This can cause several unwanted effects when arranging dock windows. Uncheck this if you do experience problems when resizing dock windows.
Restart the program after changing this option.
You might also need to reset the window layout in case the map window is missing after a restart.
Window -> Reset Window Layout in the main menu to clean up the layout after the
restart if needed.
See Window Layout for more information about window layouts which might be affected by this option.
46.6. Map Display¶
This page contains options for symbol sizes, text sizes, flight plan, user aircraft trail colors and more.
Use the scroll bar on the right to see more hidden options at the bottom.
46.6.1. Map and Elevation Profile Font¶
You can change the font for the map display. The font will also be used in the elevation profile.
46.7. Map Display 2¶
More display options for user features like range rings and more.
The right side of the page contains a tree view that allows to select the text labels that should be shown at airports, user aircraft, AI/multiplayer aircraft and other map features.
Click on the small right pointing arrow (or
+ depending on operating system and user interface style)
to open a branch with options.
Hover the mouse above the tree for tooltips giving more explanations.
46.8. Map Display Online¶
This page allows to change the default center circle sizes for online centers.
Two options below
Online Center Boundary Lookup in User Airspaces
can be used to assign OpenAir airspaces from the user airspace database
to centers by matching filename or airspace name with the callsign of
By airspace name vs. callsign: Use the airspace name within a file to assign the geometry to a center by callsign.
By airspace &file name vs. callsign: Use the airspace filename minus the
.txtextension to assign the geometry to a center by callsign.
See Online Airspaces for more information.
You can change all units that are used by Little Navmap on this page between nautical, imperial and metric. Mixed settings like meter for altitude and nautical miles for distance are possible.
Show other fuel units too: Shows kilogram and liter as small text besides main units if lbs and gallon are selected and vice versa. This is applied only to the most important fuel values like block and trip fuel, for example.
Show true course and heading besides magnetic course in information displays: Add true heading as small text besides magnetic heading displays. This applies to information, progress as well as map display (traffic patterns and holds).
See Signed Decimal Formats for more information when using
Latitude and Longitude with sign
Longitude and Latitude with sign.
Note that any numbers used in the program are not converted when
changing units. That means that you will get a minimum altitude buffer
of 1,000 meter after changing the setting
Altitude and Elevation from
feet to meter. This also applies to flight plan altitude. Therefore, do
not forget to adapt these numbers after changing units.
46.10. Simulator Aircraft¶
Allows to change various aspects around the display of the user aircraft while flying. All settings resulting in a more fluid aircraft display will use more CPU and can potentially induce stutters in the simulator.
46.10.1. Aircraft Centering Options¶
This chapter explains the various options to modify the map updates while flying. The idea is to reduce manual scrolling or zooming as much as possible while piloting the aircraft.
Read the chapters below if you find the behavior confusing (i.e. map jumping unexpectedly). Otherwise leave the default values.
220.127.116.11. Center map on aircraft and next flight plan waypoint¶
Enabled per default.
The map is zoomed to show both the aircraft and the next active waypoint on the flight plan if this is enabled while flying. Little Navmap uses several criteria to minimize map updates in this mode.
The map will fall back to the default mode of simply centering the aircraft if one of the conditions below is true:
No flight plan loaded.
Aircraft is on ground (no active magenta leg).
Aircraft distance to flight plan is more than 40 NM (active magenta leg disappears).
18.104.22.168. Do not use box mode for following the aircraft. Move the map constantly.¶
Disabled per default.
Map will follow the aircraft constantly when checked. This is also used
Center map on aircraft and next flight plan waypoint.
This option will cause Little Navmap to consume more CPU resources while flying.
22.214.171.124. Simulator aircraft scroll box size (percent of map window size)¶
Smaller values keep the aircraft centered and will move the map more often. Larger values will update the map only when aircraft reaches map boundary.
This setting is used only if simple aircraft centering is enabled. See above for details.
126.96.36.199. Scroll flight plan table back to active leg after time below¶
The active (magenta) leg will be moved to the top of the flight plan table when a new leg is activated or there is no interaction with the table for the given time period.
188.8.131.52. Clear selection in flight plan table after time below¶
The selection in the flight plan table and highlights on the map will be cleared after there is no interaction with the table for the given time period.
184.108.40.206. Allow scrolling and zooming in the map¶
Enabled per default.
This setting allows a user to move around in the map without the need to manually disable the aircraft centering.
The two points below explain the behavior of the program depending if this option is enabled or not.
Allow scrolling enabled:
The map will stop following the aircraft for the given time if the user does any interaction with the map like scrolling or zooming. You can quickly check out the destination or your overall progress, and after you stop moving around, Little Navmap will return to following your aircraft.
This option is also used in Elevation Profile.
Note that special gestures are recognized if you use the simple aircraft centering mode (
Center map on aircraft and next flight plan waypointdisabled) or if Little Navmap falls back to this mode (see above):
Using the mouse wheel, the
-key or any other method first to zoom will change and keep the zoom distance. The aircraft is still centered but the new zoom distance is used.
Starting to look around by first moving the map with mouse drag, cursor keys or any other movement: This will remember the last position and the zoom distance. You can do any map movements and Little Navmap will jump back to the last position and restore the zoom distance where you started the movement.
The same from point two applies if you jump to airports, navaids or other features by double click, context menu (
Show on Map) or map link.
Center Aircrafton and off if you find that the map jumps back to the wrong position.
Allow scrolling disabled:
Map will constantly follow the aircraft and will not allow moving away from it.
The aircraft centering will be switched off only when using one of the following functions:
Double-click into a table view or map display to zoom to an airport or a navaid.
Context menu item
Show on map.
Goto Center for Distance Search.
Show Flight Plan, when selected manually, or automatically after loading a flight plan.
Centering a Google Earth KML/KMZ file after loading
220.127.116.11. Jump back to aircraft and resume aircraft following after this time¶
Time until aircraft following is activated again after any map interaction like scrolling or zooming.
46.11. Flight Plan¶
Here you can set preferences for flight plan calculation or change the default filename for saving flight plans.
46.11.1. Avoid overwriting Flight Plan with not matching departure and destination¶
Check this option to avoid overwriting LNMPLN files with wrong flight plans after changing, departure, destination or any other parameter used in the flight plan file.
The dialog Save Flight Plan as LNMPLN will show up instead of overwriting the current flight plan when you reverse the route, for example.
46.11.2. Pattern for default flight plan names¶
Allows to customize the default file name which is proposed on first save of LNMPLN and export of some formats.
Error messages and an example is shown below the input field.
This applies to new filenames when saving LNMPLN, FSX, Prepar3D, FlightGear or MSFS flight plans.
The file suffixes like
.fgfp are appended automatically.
Export formats like X-Plane FMS which need a certain short name do not adhere to this setting.
Note that PLN files for Microsoft Flight Simulator 2020 will have special characters removed since the simulator cannot load files having these as a part of the name.
The default value is
PLANTYPE DEPARTNAME (DEPARTIDENT) to DESTNAME (DESTIDENT).
The input field falls back to the default if it is left empty or has errors.
The following variables are recognized:
VFRdepending on Flight Plan Type.
DEPARTIDENT: Departure airport ICAO code
DEPARTNAME: Departure airport name
DESTIDENT: Destination airport ICAO code
DESTNAME: Destination airport name
CRUISEALT: Cruise altitude in selected unit (meter or feet).
All variables have to be entered in upper case letters.
This button sets the flight plan file pattern to the short name
This button sets the flight plan file pattern to the long name
PLANTYPE DEPARTNAME (DEPARTIDENT) to DESTNAME (DESTIDENT).
IFR Frankfurt am Main (EDDF) to Fiumicino (LIRF).lnmpln.
Choose which weather services should be used to fetch and show METAR for airports in information window and map tooltips.
The weather type
Flight Simulator will either display weather from
the FSX or P3D connection or from X-Plane’s
METAR.rwx weather file.
Note that this is not supported for Microsoft Flight Simulator 2020.
Weather for a service will not be downloaded if you disable the service for tooltips and information panels.
Online weather is downloaded and updated every ten minutes.
46.13. Weather Files¶
Active Sky can only be selected if either Active Sky Next, AS16, Active Sky for Prepar3D v4 or Active Sky XP are installed or the weather file is selected directly. Selecting the Active Sky weather file directly can be useful if you run a networked setup. Use Windows shares or a cloud service to get access to the file on the remote computer.
The URLs of various weather services can be modified if you like to use another source. Usually there is no need to change these values.
You can change the path to the X-Plane weather file if you’d like to load it on a remote computer using a network share.
The test buttons for the online weather services can also be used to find out if Little Navmap can connect to Internet. Check your firewall settings if these fail.
Default values for web addresses:
NOAA Weather Service URL:
VATSIM Weather Service URL:
IVAO Weather Download URL:
NOAA Wind Service Base URL:
While this happens rarely some services might be interrupted for hours or even a day or two. Little Navmap will show error messages if this is the case.
You might want to check you internet access but otherwise ignore these if it does not happen for a longer time.
46.14. Online Flying¶
This page allows to change settings for online networks.
See Online Networks for an overview.
46.14.1. Online Service¶
Disables all online services and hides all related window tabs, menu items and toolbar buttons. No downloads will be done.
Uses the predefined configuration for the VATSIM network. No other settings are needed.
The update rate depends on configuration and is typically three minutes.
Uses the predefined configuration for the IVAO network. No other settings are needed.
The update rate depends on configuration and is typically three minutes.
18.104.22.168. Custom with Status File¶
This option allows to connect to a private network and will download a
status.txt file on startup which contains further links to e.g. the
This option allows to connect to a private network and will periodically
whazzup.txt file which contains information about online
clients/aircraft and online centers/ATC.
46.14.2. Web Addresses¶
22.214.171.124. Status File URL¶
Web address of the
status.txt file. You can also use a local path like
This file is downloaded only on startup of the Little Navmap.
Test allows to check if the URL is valid and shows the
first few lines from the downloaded text file. This does not work with
The status file format is explained in the IVAO documentation library: Status File Format.
126.96.36.199. Whazzup File URL¶
Web address of the
whazzup.txt file. You can also use a local path like
This file is downloaded according to the set update rate.
Test allows to check if the URL is valid. The test
does not work with local paths.
The whazzup file format is explained in the IVAO documentation library: Whazzup File Format.
!GENERAL VERSION = 1 RELOAD = 1 UPDATE = 20181126131051 CONNECTED CLIENTS = 1 CONNECTED SERVERS = 41 !CLIENTS :N51968:N51968:PILOT::48.2324:-123.1231:119:0:Aircraft::::::::1200::::VFR:::::::::::::::JoinFS:::::::177::: !SERVERS ...
188.8.131.52. Update Every¶
Sets the update rate that defines how often the
whazzup.txt file is
Allowed values are 5 to 1,800 seconds, 180 seconds being the default.
You can use smaller update rates for private online networks to improve map display updates.
Do not use update rates smaller than two minutes for official online networks. They might decide to block the application or block you based on your internet address if downloads are excessive.
VATSIM. Depends on the format used by your private
network. Try both options if unsure or you see strange effects like all aircraft pointing to the north.
46.15. Web Server¶
Configuration options for the internal web server of Little Navmap.
Document root directory: The root directory of the web server pages. Change this only if you would like to run a customized web server using your own style sheets and you own HTML templates.
Select Directory ...: Select root directory. Little Navmap will show a warning if no
index.htmlfile is found in the root directory.
Port number: Default 8965. That means you have to use the address
http://localhost:8965/in your browser to access the web page of Little Navmap, for example. Change this value if you get errors like
Unable to start the server. Error: The bound address is already in use..
Use encrypted connection (HTTPS / SSL): Encrypted connections use a pre-computed self-signed certificate which comes with Little Navmap. A browser will show an error message if using this certificate and requires to add a security exception. The encrypted address is
https://localhost:8965/, for example. Creating a self signed certificate is quite complex. Look at the various web articles by searching for
How to create a self signed certificate.
Start Server: Start or stop the server to test the changes above. The server status (running or not running) is reverted to the previous state when pressing
Cancelin the options dialog.
Web Server is running at http://my-computer:8965 (IP address http://192.168.1.1:8965): Shows two links to the web server. Clicking on either one opens the page in your default browser. You can always try the IP address link if the first link using the computer name does not work.
See Web Server for detailed information.
46.16. Cache and Files¶
46.16.1. Map Display¶

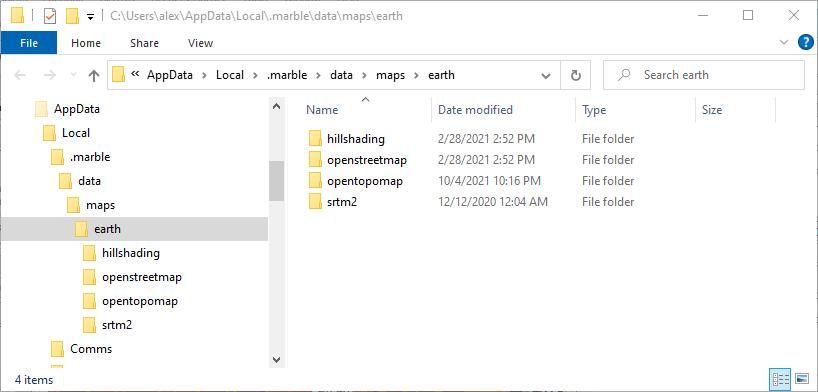

Here you can change the cache size in RAM and on disk. These caches are used to store the downloaded images tiles from the online maps like the OpenStreetMap or OpenTopoMap.
All image tiles expire after two weeks and will be reloaded from the online services then.
Note that a reduction of size or erasing the disk cache is done in background and can take a while.
The RAM cache has a minimum size of 100 MB and a maximum size of 2 GB.
The disk cache has a minimum size of 500 MB and a maximum size of 8 GB.
46.16.2. Install GLOBE elevation data¶
The online elevation data which is used per default contains several known errors. Therefore, it is recommended to use the freely downloadable GLOBE offline elevation data.
The bottom part of the page
Cache and Files in the options dialog allows to install the elevation data from the
GLOBE - Global Land One-km Base Elevation Project .
Follow the instructions below to install the GLOBE elevation data:
Click the link in the dialog or click here to open the page. Click
Get dataon the web page and then
Any or all 16 "tiles". Then click
All Tiles in One .zip fileto download the file.
The direct download link is all10g.zip.
Extract the downloaded file
all10g.zipto an arbitrary place like
...\Documents\Little Navmap\GLOBE. You can also use the folder which is suggested by the Directories dialog. As a result you will get a folder
Open the options dialog in Little Navmap and click on
Cache and Fileson the left side.
Use Offline GLOBE Elevation Dataon the
Cache and Filespage in the options dialog.
Now select the extracted directory
Select GLOBE Directory ...button on this options page. The label in the options dialog will show an error if the path is not correct.
Okif the path was recognized and the label below shows
Directory and Files are valid.
46.16.3. User Airspaces¶
You can select the path to the user airspaces and file extensions to read. Little Navmap reads all OpenAir files with the given extension in the selected directory recursively into the user airspace database.
You can provide more than one file extension using a space separated list.

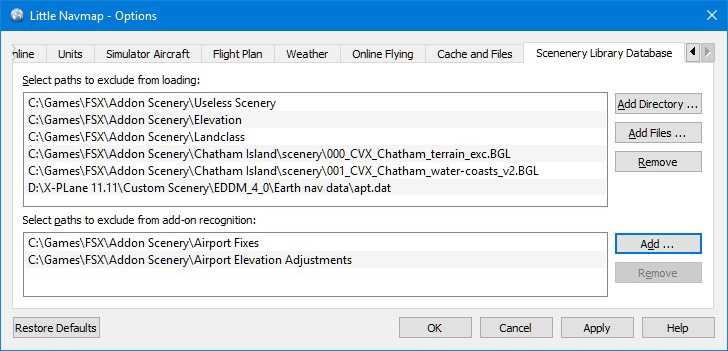

46.17. Scenery Library Database¶
Allows to configure the loading of the scenery library database.
Note that these paths apply to all Flight Simulators, FSX, P3D, MSFS and X-Plane.
You have to reload the scenery database in order for the changes to take effect.
46.17.1. Select Paths to exclude from loading¶
All directories including sub-directories as well as files in this list will be omitted when loading the scenery library into the Little Navmap database. You can also use this list to speed up database loading if you exclude directories that do not contain airports or navaids (landclass, elevation data and others).
You can also exclude FSX, P3D, MSFS BGL or X-Plane dat files if needed.
Select one or more entries in the list and click on
Remove to delete
then from the list.
Note that you can choose more than one entry in the file or directory dialogs to add several entries at once.
46.17.2. Select Paths to exclude add-on recognition¶
FSX/P3D: All scenery data that is found outside of the base flight
Scenery directory is considered an add-on and will be
highlighted on the map as well as considered during search for add-ons.
X-Plane: All airports in the
Custom Scenery directory are
considered add-on airports and will be highlighted accordingly.
Microsoft Flight Simulator 2020: All airports located in the
directory and the
...\Official\Steam are considered to be add-on airports.
You can use this list to modify this behavior.
Add-ons, like Orbx FTX Vector or fsAerodata add scenery files that
correct certain aspects of airports like elevation, magnetic declination
or others. All these airports will be recognized as add-on airports
since all their files are not stored in the base flight simulator
Insert the corresponding directories or files into this list to avoid unwanted highlighting of these airports as add-ons.
Provided your simulator is installed in
184.108.40.206. ORBX Vector¶
Exclude the directories below from add-on recognition. Do not exclude them from loading since you will see wrong airport altitudes.
220.127.116.11. Flight1 Ultimate Terrain Europe¶
Exclude these directories from loading to speed up the process:
18.104.22.168. ORBX Regions¶
Exclude these directories from loading:
