5. Quick Overview

Click images to enlarge.

5.1. Functions

_images/overview.jpg

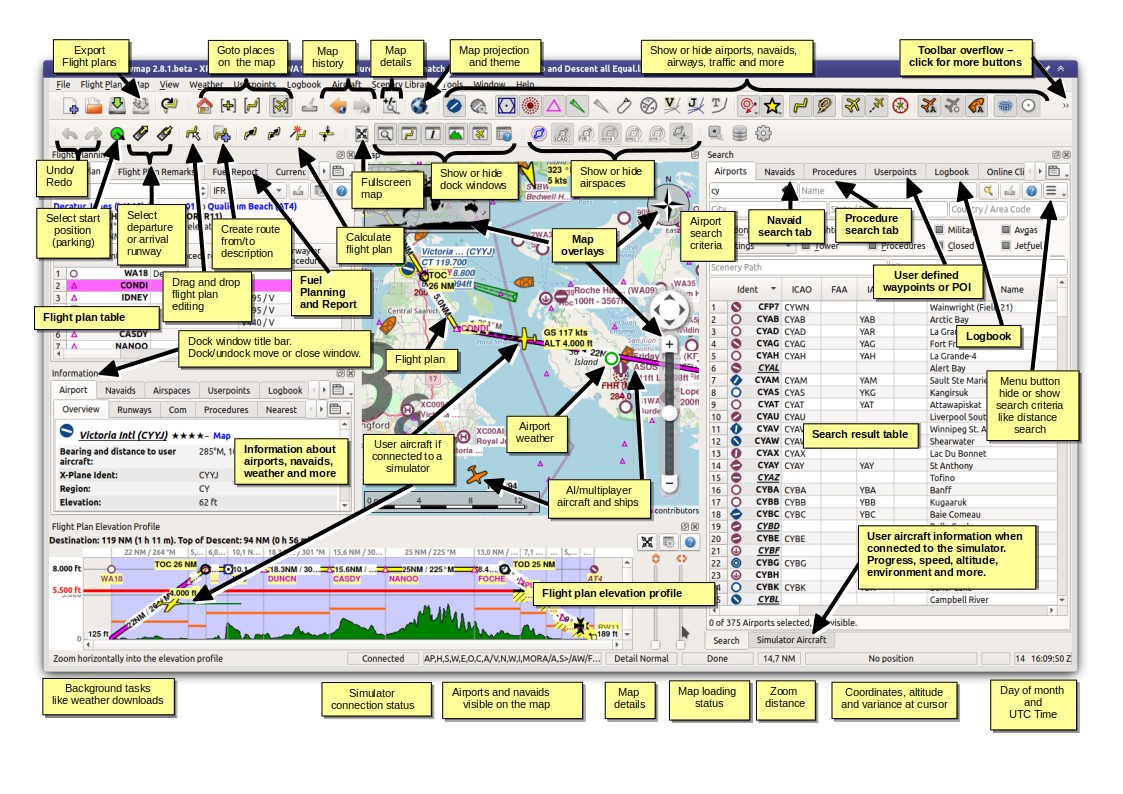

A quick overview of Little Navmap showing the most important functions. Click image to enlarge.

_images/overview2.jpg

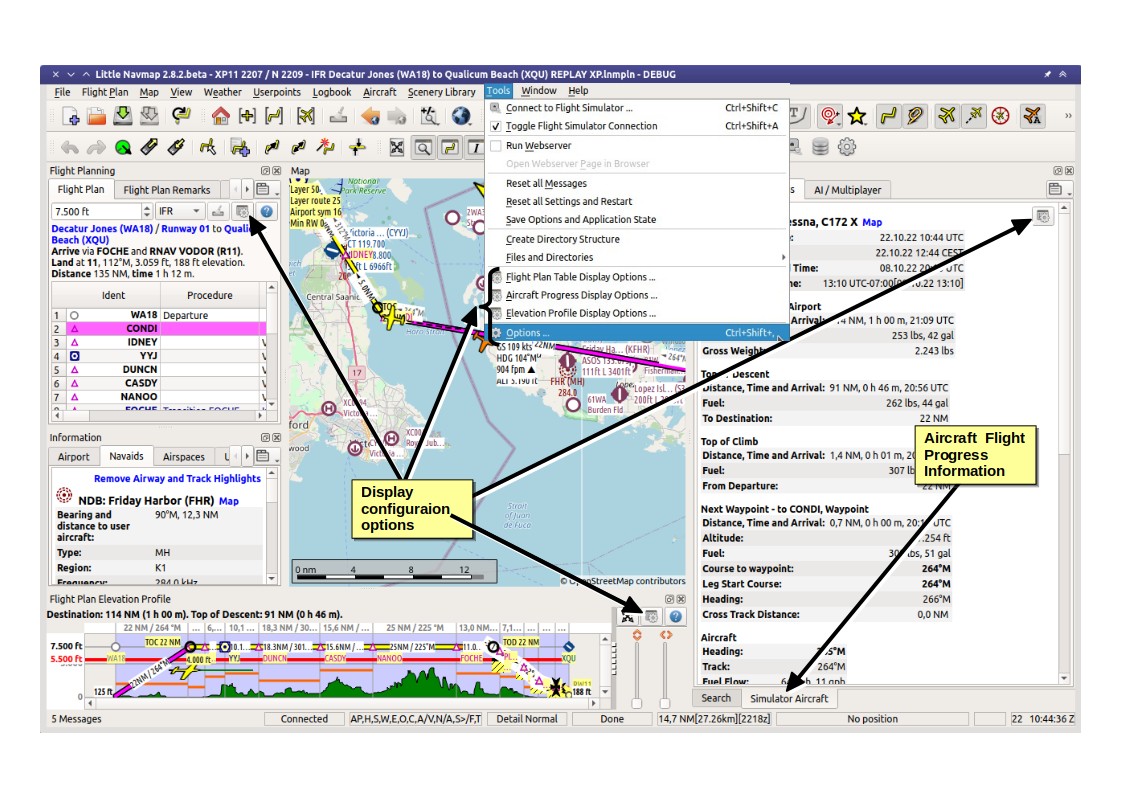

A quick overview of Little Navmap showing configuration options and aircraft progress. Click image to enlarge.

5.2. Context Menus

Little Navmap makes extensive use of context menus, which are used on the map, on the flight plan table and search result tables.

See also Context Menus.

_images/contextmenus.jpg

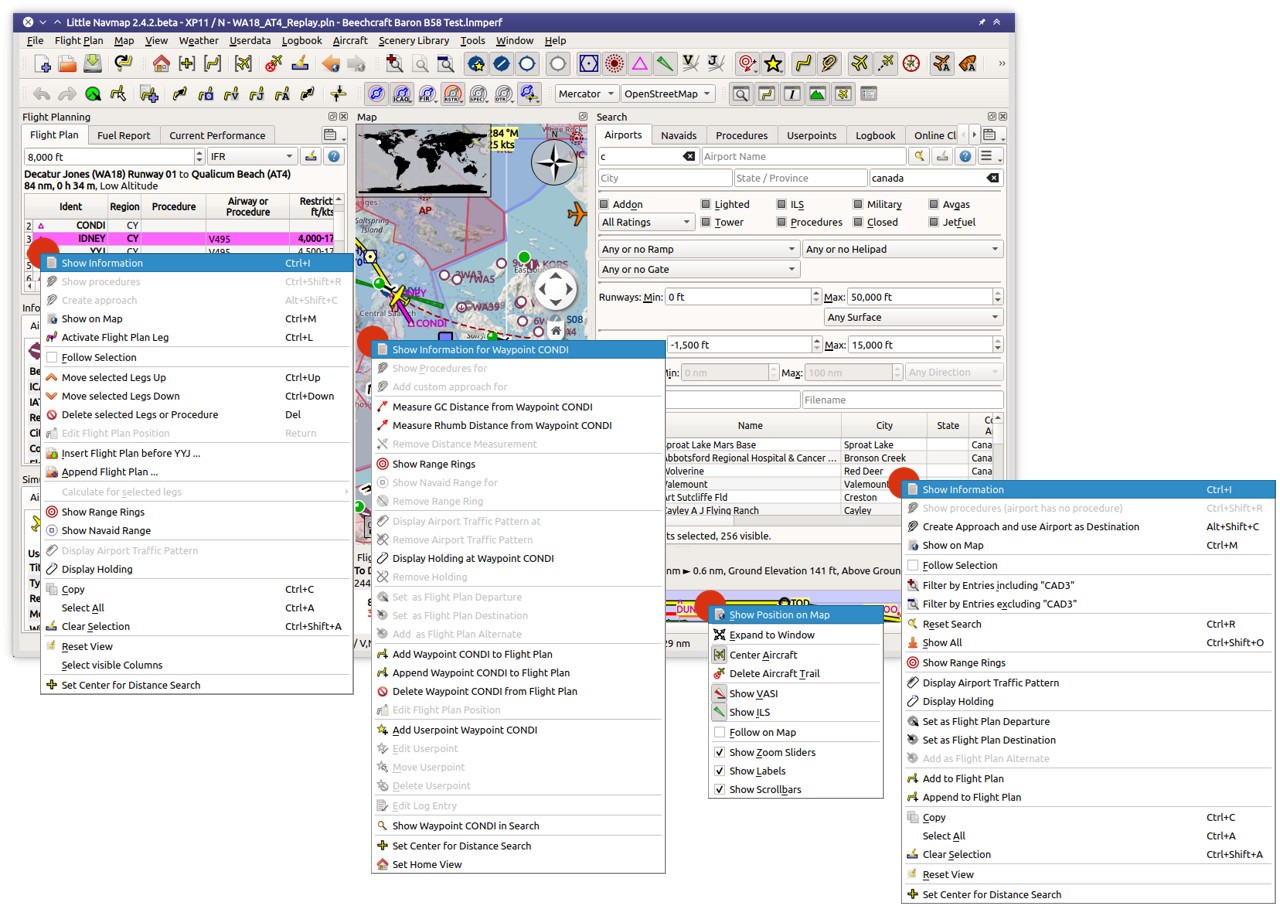

The most important context menus which are can be used to build a flight plan, navigate the map or show information. Image based on Little Navmap 2.4.5. Click image to enlarge.

5.3. Help

There are many ways to get help in Little Navmap. The help menu links to the most important online pages as well as the included user manual.

Hove the mouse cursor above a button or input field to get help in form of tooltips (small pop up windows).

See also Tooltip Help, Help Buttons and Help Menu.

_images/help.jpg

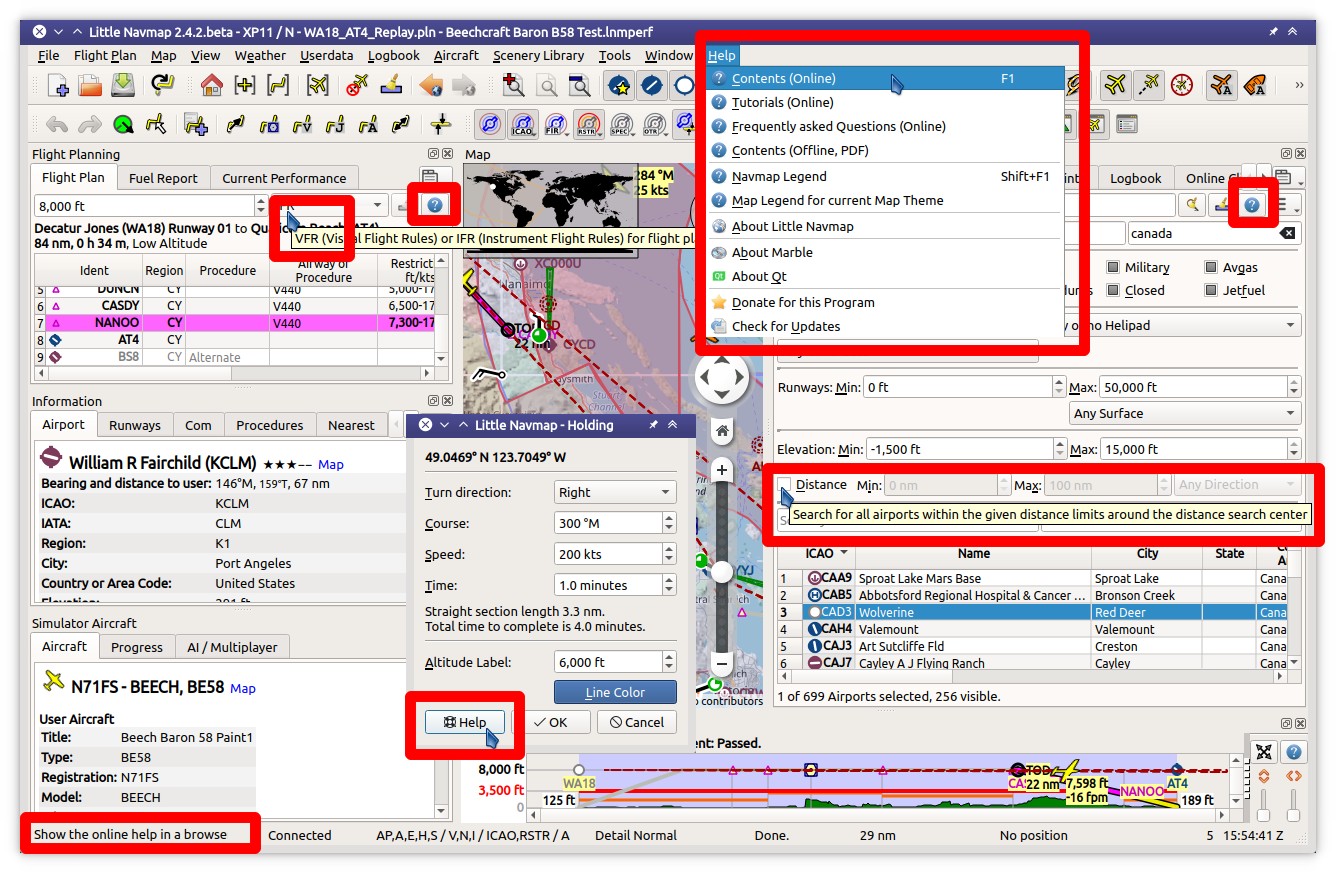

Where to get help and more information. Tooltips, status bar and help buttons marked red. Image based on Little Navmap 2.4.5. Click image to enlarge.
