Compass Rose Compass Rose

The compass rose indicates true north, magnetic north, aircraft heading and aircraft track.

User aircraft heading, track, distance rings and markers are shown if Little Navmap is connected to a simulator. The rose is centered around the user aircraft if connected.

The compass rose is kept centered in the current view if not connected to a simulator. Magnetic declination is based on the declination in the center.

The size is adapted to the map view size but not larger than 1000 nm and not smaller than 4 nm.

Line thickness and other display options can be changed in dialog Options on the tab Map Display.

The colors for flight plan leg course and crab angle indicator depend on settings for active flight plan leg which can be changed in the dialog Options on tab Map Display.

Compass Rose Display Options

Picture above: Compass rose display settings in options dialog.

Indicators

True North True north.
Magnetic North Magnetic north.
Distance Circles Distance circles and marks from user aircraft if connected.
Aircraft Track Solid line shows aircraft track in degrees magnetic if connected.
Aircraft Heading Dashed line shows aircraft heading if connected.
Flight Plan Leg Course Magenta line segment shows the course to next waypoint of the active flight plan leg. Hidden if no flight plan loaded.
Crab Angle Crab angle indicator. Shows the heading that has to be flown towards the next waypoint of the active flight plan leg considering cross wind. Hidden if no flight plan loaded.

Examples

Compass Rose Compass Rose Aircraft

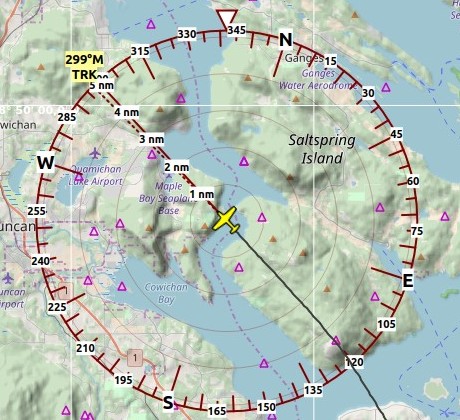

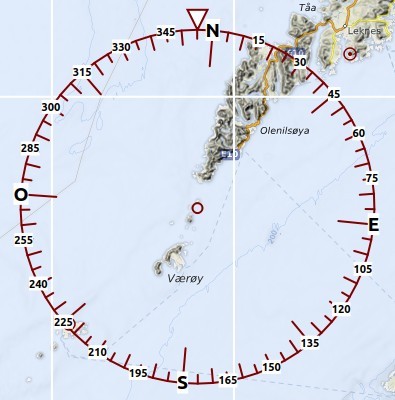

Picture above: Compass rose without simulator connection. Distance rings disabled. Picture above: Compass rose centered around user aircraft. No flight plan loaded. Therefore, crab angle and next waypoint indicators hidden.
