Image Export

This dialog appears when saving the map view to an image file, for AviTab or copying it to the clipboard.

Dialog input and selection fields:

  • Resolution: Select the desired resolution here. The following options are available:
    • Current Map View: Export the map view as shown. The current pixel size of this image is shown in the list entry.
    • Custom Resolution: Use the pixel size from the input fields Width and Height.
    • 720p, 1280 × 720, 16∶9,
    • 1080p, 1920 × 1080, 16∶9,
    • 1440p, 2560 × 1440, 16∶9,
    • 2160p, 3840 × 2160, 16∶9 and
    • 4320p, 7680 × 4320, 16:9: Pre-defined typical image and monitor resolutions.
  • Width and Height: Use this to define the pixel size for the image if Custom Resolution is selected.
  • Zoom out to avoid blurred map: Checking this option helps to get a sharp background image for online maps (e.g. from OpenStreetMap). This works best with the map projection Mercator. As a result the map might be zoomed out farther than expected in some cases.

Note that all options except Current Map View will change visible details. Navaids might appear which are not shown in the map on screen, for example.

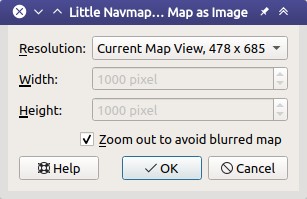

Image Export Dialog

Picture above: Dialog show after choosing Save Map as Image ....
