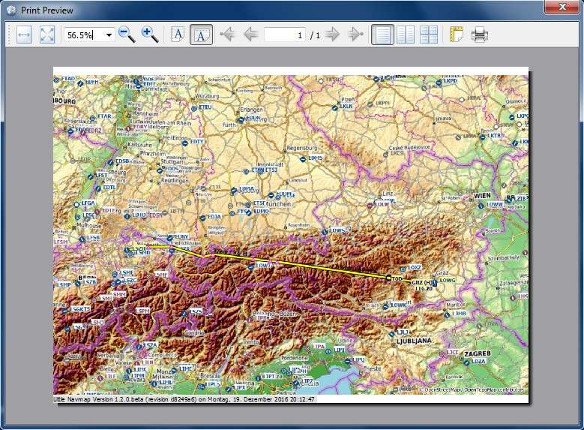

49.1. Print Map¶
Opens the print preview dialog allowing the current map view to be printed.

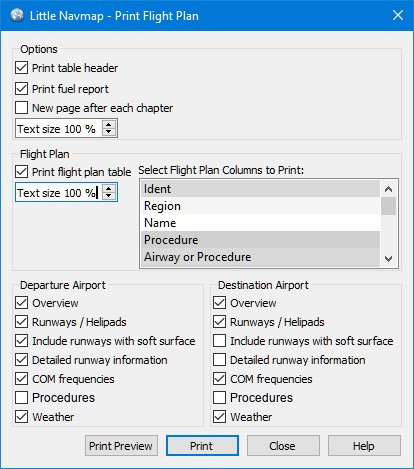

49.2. Print Flight Plan¶
Print the current flight plan together with departure and destination airport information.
Print Table Header: Adds a header showing departure, destination and other information like the label on top of the tab
Planin the dock window
Print Fuel Report: Print the fuel calculation report from the tab
Aircraftin the dock window
New page after each chapter: Add a page feed after header, flight plan, fuel report and airport information.
Text Size: Allows to increase or decrease the size of all texts except the flight plan table.
49.2.2. Flight Plan¶
Print flight plan table: Adds the flight plan to the print.
Text Size: Increase or decrease the size of the flight plan table text.
Select Flight Plan Columns to Print: Click on the names to include or exclude flight plan columns. Note that the columns are printed in the same order as shown in the Flight Plan Table.
49.2.3. Options for Departure and Destination Airport¶
Overview: Print the airport overview as show in the
Informationdock window on tab
Runways / Helipads: Print runway and helipad information.
Include runways with soft surface: Include runways with soft surfaces like grass, gravel and others.
Detailed runway information: Include detailed information for the runway ends like approach lighting, VASI types, ILS information and more.
COM frequencies: Include communication frequencies like tower, ATIS, UNICOM and others.
Procedures: Print procedure information as shown on the tab
Weather: Print the decoded weather for all enabled sources as shown on the tab
